How Do I Choose the Right Material for a Thermoformed Part?

Welcome to the world of Polyreflex, a leading manufacturer of high-quality thermoplastic sheets based in China. With a strong commitment to innovation and excellence, we provide a wide range of materials that cater to diverse industrial needs. Our expertise in producing versatile and durable thermoplastic sheets has positioned us as a trusted partner in the manufacturing sector.

Thermoforming is a widely-used manufacturing process that involves heating a thermoplastic sheet until it becomes pliable, then shaping it over a mold to create precise, durable parts. This technique is crucial in various industries, including automotive, packaging, medical, and consumer goods, due to its efficiency and cost-effectiveness. Thermoforming allows for the production of complex shapes and large parts with excellent surface finishes, making it a preferred method for many manufacturers.

The purpose of this article is to guide you through the process of selecting the right material for your thermoformed parts. Choosing the appropriate thermoplastic material is critical to the success of your project, as it impacts the part's performance, durability, and overall cost. We will explore key factors to consider, common materials used in thermoforming, and how to match material properties to your specific needs. By the end of this article, you will have a clear understanding of how to make an informed decision when choosing a material for your thermoforming projects.

Understanding Thermoforming

Thermoforming is a manufacturing process where a thermoplastic sheet is heated to a pliable forming temperature, then shaped to a specific form using a mold, and trimmed to create a usable product. The process begins with the selection of a thermoplastic sheet, which is then clamped and heated until it reaches a soft, malleable state. Once pliable, the sheet is stretched over or into a mold and held in place while it cools and solidifies into the desired shape. The final step involves trimming the excess material, resulting in a finished part ready for use.

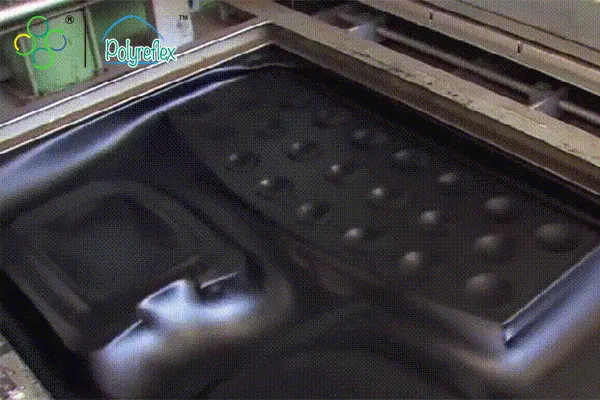

There are two main types of thermoforming: vacuum forming and pressure forming. Vacuum forming involves using a vacuum to pull the heated plastic sheet against the mold, while pressure forming uses compressed air to push the sheet against the mold. Each method has its advantages, depending on the complexity and detail required in the final part.

Common Applications of Thermoformed Parts

Thermoforming is a versatile process used across various industries due to its ability to produce high-quality, cost-effective parts. Some common applications include:

1. Automotive Industry: Thermoformed parts are used in vehicle interiors, exteriors, and under-the-hood components. Examples include dashboard panels, door liners, and air ducts.

2. Packaging Industry: Thermoforming is widely used to create packaging solutions such as clamshells, blister packs, trays, and containers, which provide protection and enhance the presentation of products.

3. Medical Industry: Medical device housings, surgical trays, and packaging for sterile products are often made through thermoforming due to the process's precision and hygiene standards.

4. Consumer Goods: Thermoformed parts are found in a variety of consumer products, including appliance housings, recreational equipment, and toys.

5. Food Industry: Thermoforming is used to produce food packaging that ensures freshness and extends shelf life, such as yogurt cups, meat trays, and ready-meal containers.

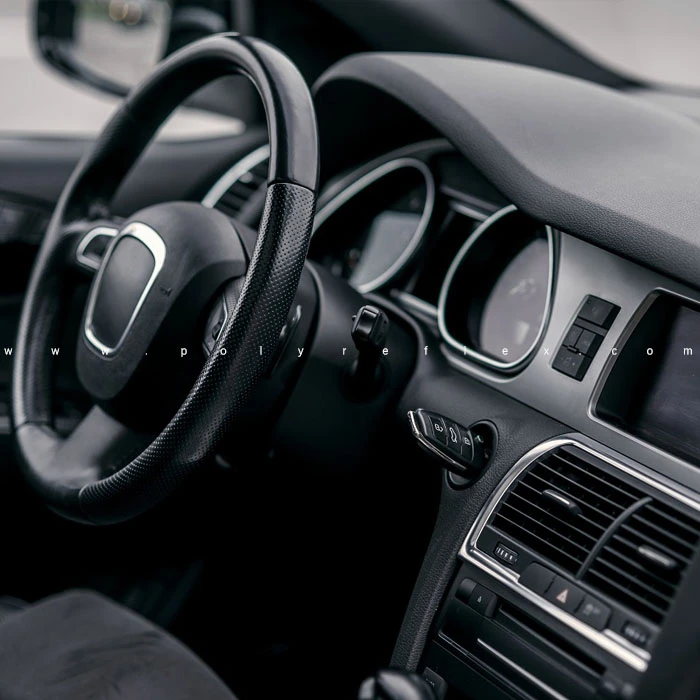

Thermoforming Automotive Interiors

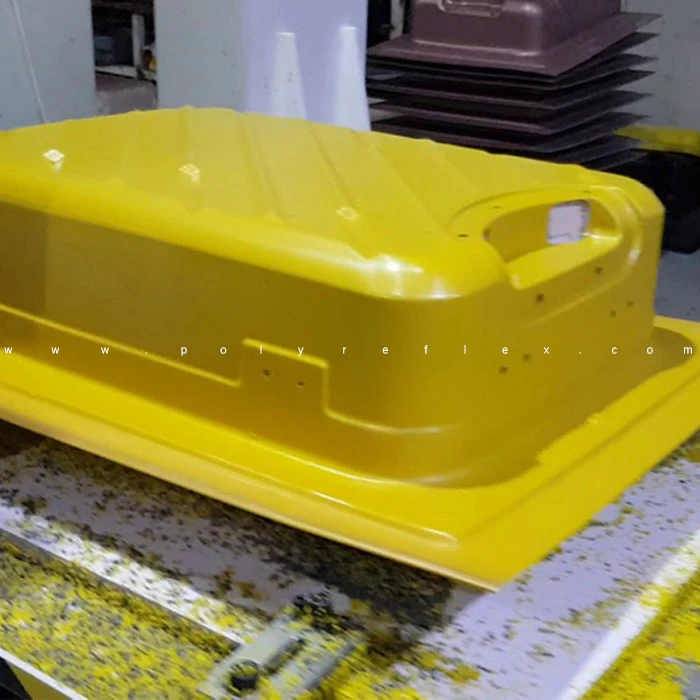

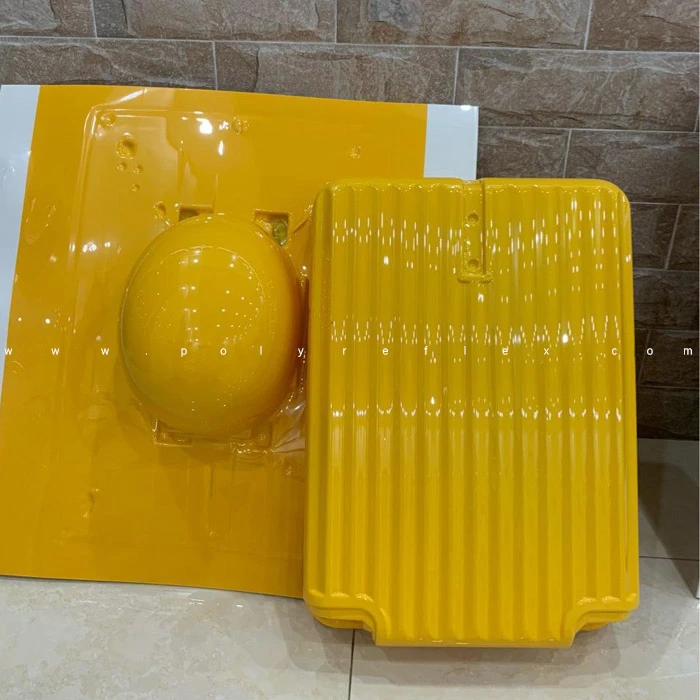

Thermoforming Luggage

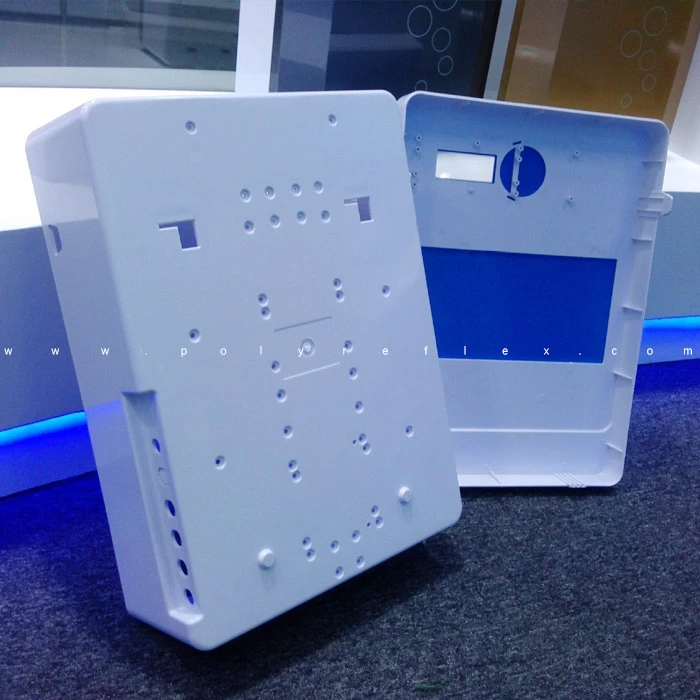

Electronic Equipment Housing

Benefits of Using Thermoformed Parts in Manufacturing

Thermoforming offers several advantages that make it an attractive option for manufacturers:

Cost-Effectiveness: Thermoforming is generally more economical than other molding processes, especially for large parts and shorter production runs. The tooling costs are lower, and the process is faster, reducing overall production costs.

Design Flexibility: The thermoforming process allows for a high degree of design flexibility, enabling the creation of complex shapes and detailed features that would be challenging with other methods.

Material Efficiency: Thermoforming uses thermoplastic sheets efficiently, with minimal waste. Any excess material trimmed during the process can often be recycled and reused.

Short Lead Times: The simplicity and speed of the thermoforming process result in shorter lead times, allowing manufacturers to bring products to market more quickly.

Durability and Quality: Thermoformed parts are known for their durability and high-quality finish. They can withstand rigorous use and environmental conditions, making them suitable for a wide range of applications.

By understanding the thermoforming process and its benefits, you can better appreciate why it is a preferred method for manufacturing various parts. This knowledge will also aid in making informed decisions when selecting materials for your thermoformed parts, ensuring optimal performance and cost-efficiency.

Key Factors in Choosing Thermoforming Materials

Choosing the right material for a thermoformed part is crucial for ensuring the product meets its performance, durability, and cost requirements. Several key factors must be considered when selecting a material for thermoforming:

1. Mechanical Properties

The mechanical properties of a material significantly impact the performance and longevity of the thermoformed part. Key mechanical properties to consider include:

Strength: The material should have sufficient tensile and compressive strength to withstand the forces it will encounter during use.

Flexibility: Depending on the application, the material may need to be flexible to accommodate bending or stretching without breaking.

Durability: The material should be able to endure repeated use and exposure to environmental factors without degrading.

Impact Resistance: For applications where the part may be subject to shocks or impacts, a material with high impact resistance is essential.

Load-Bearing Capacity: The material should support the weight or stress placed on it without deforming or failing.

2. Thermal Properties

Understanding the thermal properties of a material is crucial for applications involving exposure to varying temperatures. Important thermal properties include:

Heat Resistance: The material must withstand the operating temperatures without melting or losing structural integrity.

Thermal Stability: The material should maintain its properties and dimensions under fluctuating temperature conditions.

Thermal Conductivity: Depending on the application, the material's ability to conduct or insulate heat may be important.

3. Chemical Resistance

In many industrial applications, the material may come into contact with various chemicals. Consider the following:

Chemical Resistance: The material should resist degradation when exposed to chemicals such as acids, bases, solvents, and oils.

Environmental Factors: The material should be able to withstand exposure to environmental elements such as UV radiation, moisture, and pollutants.

4. Cost Considerations

Balancing the material's quality and cost is essential for efficient manufacturing. Key cost considerations include:

Material Cost: The raw material cost should align with the budget for the project while meeting the necessary performance requirements.

Production Efficiency: Materials that are easier to thermoform can reduce production time and costs.

Long-Term Cost Efficiency: Consider the material's lifespan and maintenance needs, as a more durable material may offer better long-term value.

5. Aesthetic Requirements

The visual appearance of the thermoformed part can be critical, especially for consumer products. Consider the following aesthetic factors:

Surface Finish: The material should have a desirable surface texture and finish, whether smooth, matte, or glossy.

Color Options: The availability of different colors and the material's ability to maintain color consistency are important for branding and design purposes.

Visual Appeal: The overall look of the material should meet the aesthetic standards required for the end product.

6. Regulatory Compliance

Ensuring that the material meets industry standards and regulations is vital for safety and legal compliance. Consider:

Industry Standards: The material should comply with relevant industry standards such as ISO, ASTM, or other specific regulations for the application.

Material Certifications: Certifications such as FDA approval for food contact materials or medical-grade certifications for healthcare applications may be necessary.

Environmental Regulations: The material should meet environmental regulations, including restrictions on hazardous substances and requirements for recyclability.

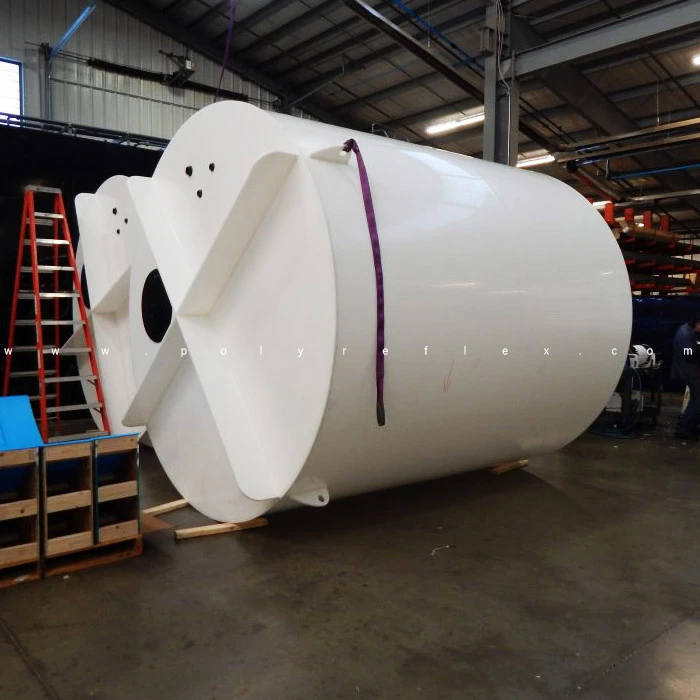

Thermoforming Chemical Resistant Tanks

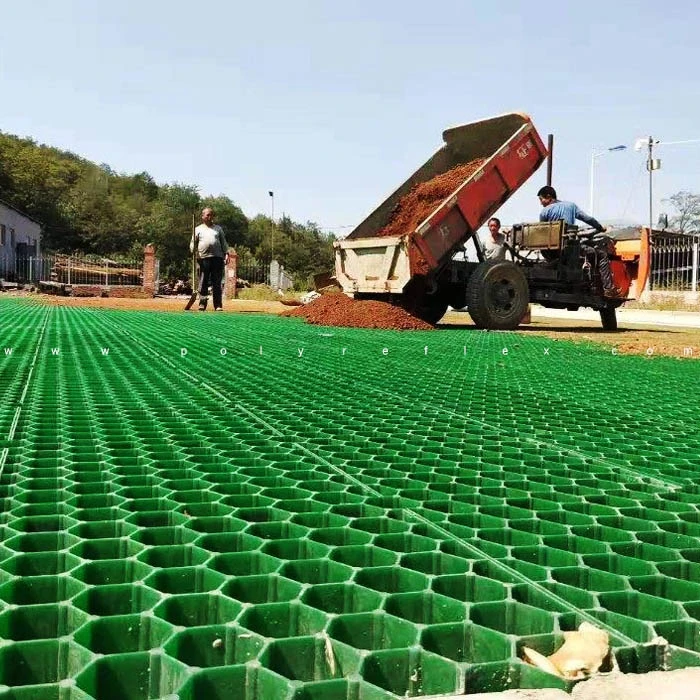

Thermoforming Grass Planting Grid

By carefully evaluating these key factors, you can select the optimal material for your thermoformed parts, ensuring they meet all performance, durability, and cost requirements while also aligning with aesthetic and regulatory needs.

Common Thermoforming Materials

1. ABS (Acrylonitrile Butadiene Styrene)

Strengths: High impact resistance, excellent mechanical properties.

Applications: Automotive parts, electronic enclosures.

2. HDPE (HighDensity Polyethylene)

Strengths: Outstanding chemical resistance, exceptional durability.

Applications: Industrial containers, packaging solutions, agricultural equipment.

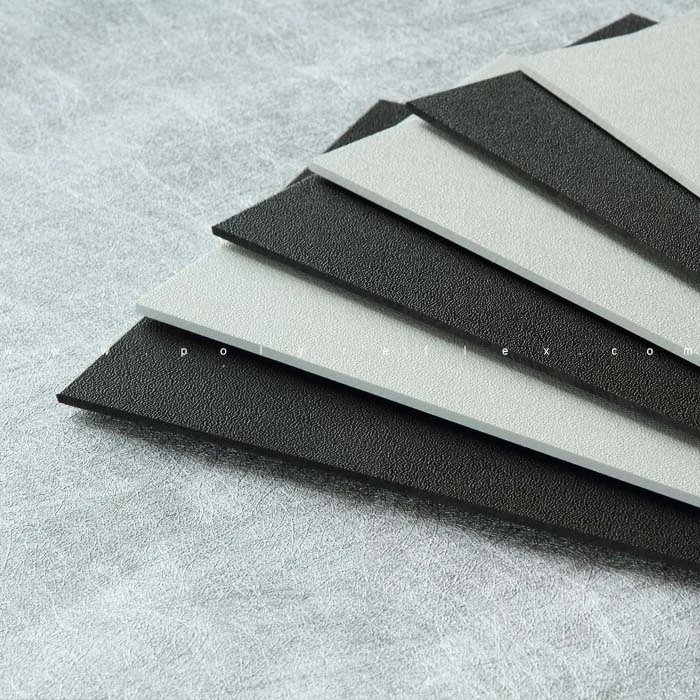

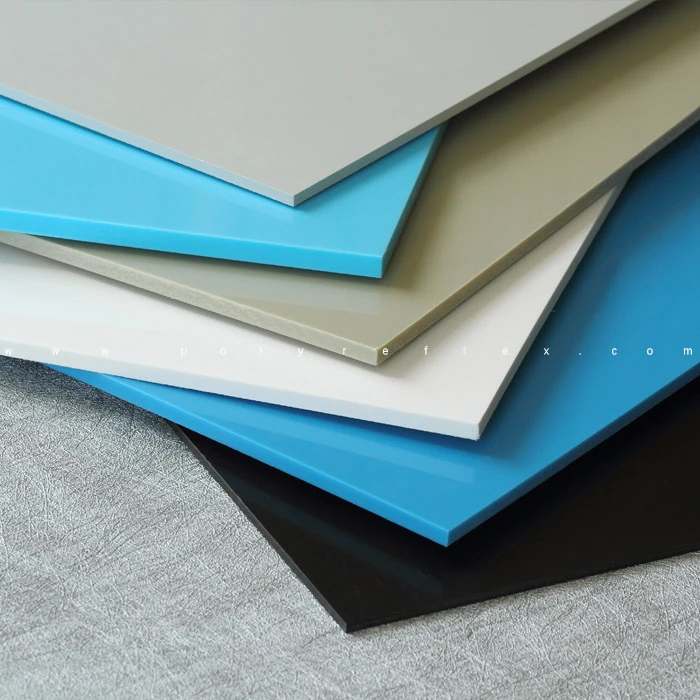

ABS Sheets

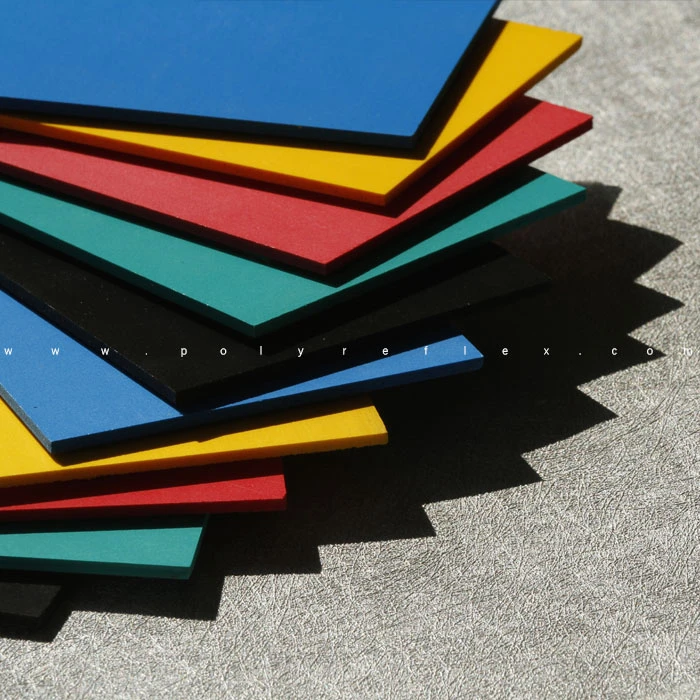

HDPE Sheets

3. PVC (Polyvinyl Chloride)

Strengths: Versatile with good chemical resistance.

Applications: Medical devices, construction materials.

4. PETG (Polyethylene Terephthalate Glycol)

Strengths: High clarity, good impact resistance.

Applications: Pointofpurchase displays, food packaging.

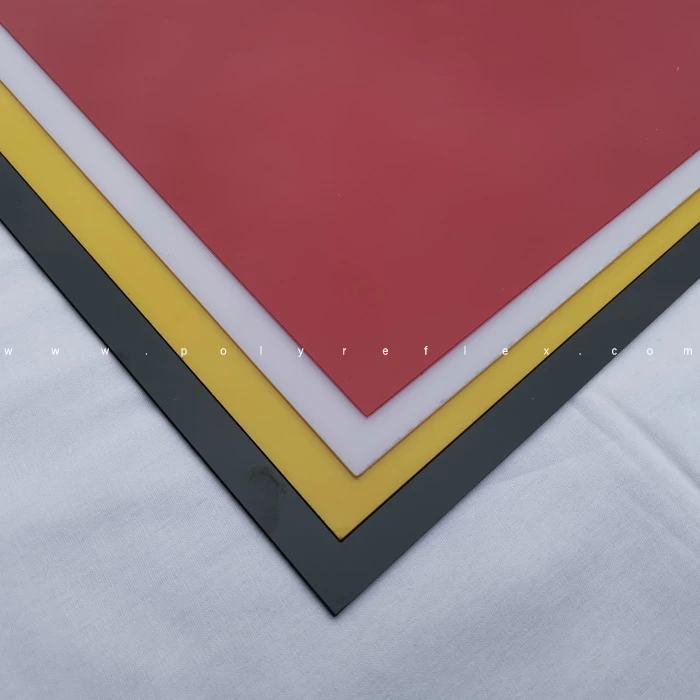

PVC Sheets

PETG Sheets

5. HIPS (High Impact Polystyrene)

Strengths: Costeffective, easy to thermoform.

Applications: Disposable products, food containers.

6. PP (Polypropylene)

Strengths: High fatigue resistance, excellent chemical resistance.

Applications: Automotive parts, reusable containers.

These materials each offer unique properties that cater to specific needs and applications, making them suitable for a variety of thermoforming projects.

How to Match Material Properties to Your Needs

Selecting the right material for your thermoformed parts involves carefully matching the material properties to the specific requirements of your application. Here’s a stepbystep guide to help you make the best choice:

Assessing Specific Application Requirements Start by clearly defining the needs of your application. Consider the following questions: 1. What is the intended use of the part? Identify the primary function the part needs to perform. 2. What environmental conditions will the part be exposed to? Consider factors such as temperature, humidity, UV exposure, and potential chemical contact. 3. What mechanical stresses will the part face? Determine if the part needs to withstand impacts, bear loads, or endure repeated use.

To select the right material for your thermoforming application, align the material’s properties with your specific needs. Consider mechanical properties such as strength, durability, flexibility, and impact resistance to ensure the material can withstand the required forces and conditions. Evaluate thermal properties, ensuring the material offers heat resistance and thermal stability. Assess chemical resistance to protect against degradation from chemical exposure and environmental factors like UV radiation and moisture.

Additionally, balance performance with budget and compliance by comparing material costs and production efficiency, and ensuring the material meets industry standards and certifications. Finally, take into account aesthetic and functional aspects, such as surface finish, color options, ease of fabrication, and weight, to meet both visual and practical requirements. This comprehensive evaluation will help you choose the best material for optimal results in your thermoforming projects.

Case Studies and Examples

Automotive Industry Success: A leading automotive manufacturer partnered with Polyreflex to develop thermoformed interior components for their vehicles. By selecting HDPE sheets for their exceptional strength and impact resistance, the manufacturer achieved significant cost savings without compromising on quality. The resulting parts surpassed performance expectations, demonstrating the effectiveness of HDPE in automotive applications.

Medical Device Innovation: A medical device company sought a material solution for thermoformed housings for their portable medical devices. Polyreflex recommended PETG sheets for their high clarity and chemical resistance, meeting stringent regulatory requirements for medical-grade materials. The thermoformed parts provided durable protection for sensitive equipment, ensuring reliability and compliance in healthcare settings.

Consumer Product Enhancement: A consumer goods manufacturer utilized thermoforming to create packaging solutions for their electronic products. By choosing ABS sheets for their excellent mechanical properties and versatility, the manufacturer achieved packaging that not only protected the products during shipping but also enhanced their visual appeal on retail shelves. The success of this project highlighted the importance of material selection in achieving both functionality and aesthetics.

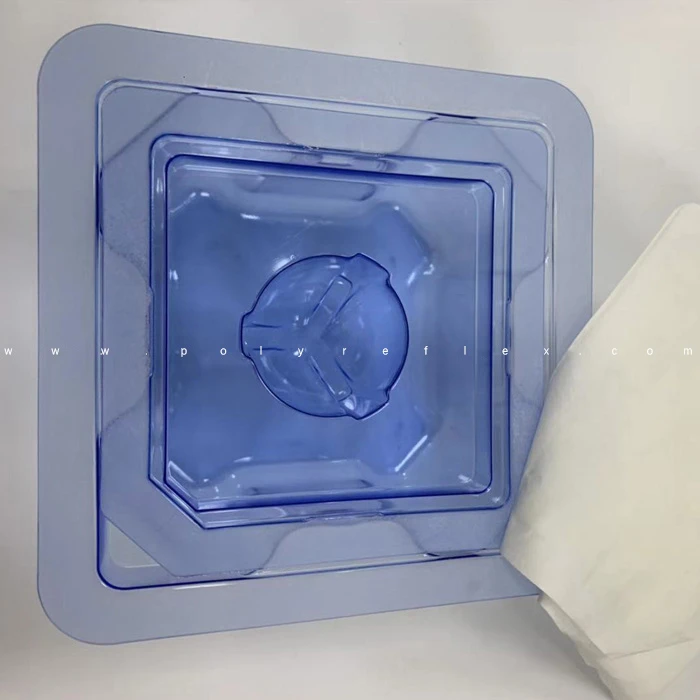

Thermoforming Medical Sterile Boxes

Thermoforming Luggage

These case studies exemplify the diverse applications and benefits of thermoforming materials. By analyzing material choices, outcomes, and lessons learned from real-world projects, manufacturers can gain valuable insights into optimizing their thermoforming processes and achieving superior results in their own projects.

In conclusion, selecting the right material for thermoforming is a critical decision that impacts the performance, durability, and cost-effectiveness of your parts. By considering factors such as mechanical, thermal, and chemical properties, as well as cost, aesthetics, and regulatory compliance, you can make an informed choice that aligns with your specific application requirements.

Polyreflex is here to support you in your material selection process. With our expertise in thermoplastic sheets and commitment to quality, we offer a wide range of materials tailored to diverse thermoforming applications. Whether you need advice on material selection or access to high-quality thermoplastic sheets, Polyreflex is your trusted partner.
